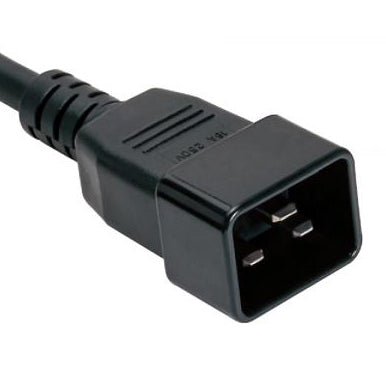

YP-33 (IEC C20) Denmark
OEM Custom: YP-33 (IEC C20) Denmark IEC C20 Europe power cord plug with VDE and 12 other certifications. Rated up to 16A 250V. OVE, CEBEC, DEMKO, FIMKO, LCIE, VDE, IMQ, KEMA, NEMKO, SEMKO, ESTI, and ASTA certified 3 prong plug. Built to IEC 60320-C20 standard. For price, availability or consultation contact...
|
OEM Custom: YP-33 (IEC C20) Denmark IEC C20 Europe power cord plug with VDE and 12 other certifications. Rated up to 16A 250V. OVE, CEBEC, DEMKO, FIMKO, LCIE, VDE, IMQ, KEMA, NEMKO, SEMKO, ESTI, and ASTA certified 3 prong plug. Built to IEC 60320-C20 standard. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | IEC60320 C20 |
| Maximum Current rating | 16A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 1.0mm² and 1.5mm² |
| Outer Mold Material | 50P PVC |
| Blade Material | Nickel Coated Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | ENEC certificate# 40032200, German VDE license# 40005197, cUL, CSA and many others |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 1.00mm² | H05VV-F. H05V2V2-F | 10/250 |
| 1.50mm² | H05VV-F. H05V2V2-F | 16/250 |
