516P6 IEC 60309 Molded Power Cord Plug (YP-516)


Regular price Save $0.00
Shop Wholesale / Login

OEM Custom

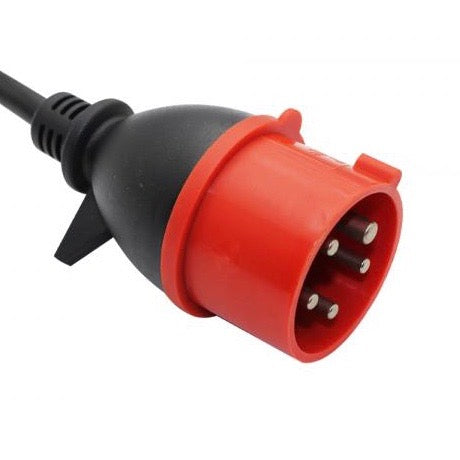

YP-516  -  516P6 IEC 60309 Molded Power Cord Plug (YP-516)

IEC 60309 five pin 16 amp three phase Pin and Sleeve international power cords.  These products have the hour designation 6 and ingress protection rating of IP44 and have a molded low profile splash-proof design.  These power cords are available with rubber or PVC wire and are TUV certified.


For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Connector Standard IEC 60309 516P6
Number of Contacts 5 (3P + N + PE) Note: P = Pole, N = Neutral, PE = Earth or ground
Position of Earthing Contact 6h (hour designation)
Maximum Current rating 16A
Maximum Voltage

200/346V, 240/415V

Frequency Rating 50/60Hz
Ingress Protection Rating IP 44
Number of Poles and Wires 4 poles, 5 wires
Available Wire Thickness 2.5mm² and 4.0mm²
Outer Shell Color Red
Outer Housing Outer Mold Material High Impact Nylon (PA66 or also known as polyamide)
Lower Housing Outer Mold Material 35P PVC (Black)
Terminal Blade Material Brass
Flammability Rating UL 94V-2
Temperature Rating -40°C through +75°C
Approvals TUV
Environmental Certifications RoHS 2, RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity and Continuity
