YC-20L-1 (Left Angle IEC C15) UK
- Fully Certified by Territory
- Made to Order
- Expert Advice Available on Product
- Fast & Secure Shipping
- Description
- Product Specification
- Shipping & Returns
- Customer Review
|

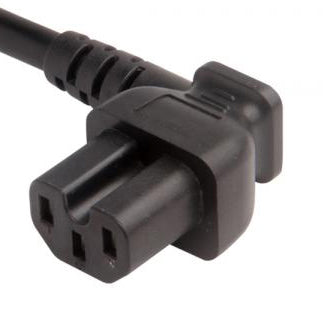

OEM Custom: YC-20L-1 (IEC C15 Left Angle) UK IEC C15 left angle power cord receptacle for Europe with VDE and ENEC approvals. Built to the IEC 60320-C15 standard. Rated up to 10A 250V. Our IEC C15 power cord receptacles are fully molded with a low profile ergonomic design and RoHS and REACH compliant. The IEC C15 power cord receptacle is essentially the same as the C13 but it is designed for use in higher temperature applications. The maximum pin temperature of the appliance inlet is 65°C with a C13 but up to 120°C for the C15. It is distinguished from the C13 by adding a polarizing notch to the bottom surface. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | IEC 60320 C15 left angle |
| Maximum Current rating | 10A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 0.75mm² through 1.5mm² |
| Outer Mold Material | 50P PVC |
| Blade Material | Nickel Coated Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | ENEC certificate# 40029577, VDE license# 40005197, CE and many others |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 0.75mm² | H05V2V2-F | 10/250 |
| 1.00mm² | H05V2V2-F | 10/250 |
| 1.50mm² | H05V2V2-F | 10/250 |
| Attribute | Specification |
|---|---|
| Connector Standard | IEC 60320 C15 left angle |
| Maximum Current rating | 10A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 0.75mm² through 1.5mm² |
| Outer Mold Material | 50P PVC |
| Blade Material | Nickel Coated Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | ENEC certificate# 40029577, VDE license# 40005197, CE and many others |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 0.75mm² | H05V2V2-F | 10/250 |
| 1.00mm² | H05V2V2-F | 10/250 |
| 1.50mm² | H05V2V2-F | 10/250 |
