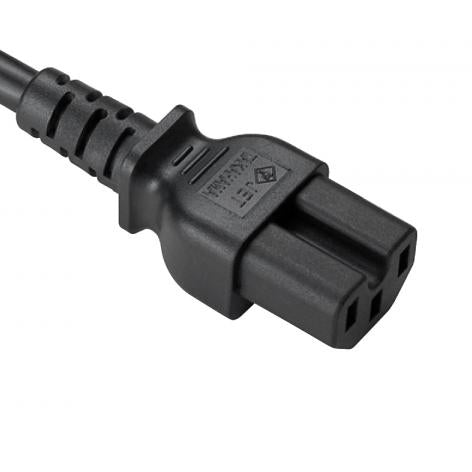

YC-20 (IEC C15) Gulf Countries
CONTACT US TO ORDER
OEM Custom: YC-20 (IEC C15) Gulf Countries IEC C15 power cord receptacle with CE, VDE, ENEC and many other approvals. Built to the IEC 60320-C15 standard. Rated up to 10A 250V. Our IEC C15 power cord receptacles are fully molded with a low profile ergonomic design and RoHS and REACH compliant. The IEC C15 power cord receptacle is essentially the same as the C13 but it is designed for use in higher temperature applications. The maximum pin temperature of the appliance inlet is 65 °C with a C13 but up to 120 °C for the C15. It is distinguished from the C13 by adding a polarizing notch to the bottom surface. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
Attribute | Specification |
---|---|
Connector Standard | IEC 60320 C15 |
Maximum Current rating | 10A |
Maximum Voltage | 250V |
Number of Poles and Wires | 2 poles, 3 wires |
Available Wire Thickness | 0.75mm² and 1.0mm² |
Outer Mold Material | 50P PVC |
Blade Material | Brass |
Flammability Rating | UL 94V-0 |
Color | Black is standard but any color available |
Temperature Rating | -40°C through +120°C |
Approvals | CE, VDE, ENEC and many others |
Environmental Certifications | RoHS, REACH |
Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
---|---|---|
0.75mm² | H05V2V2-F | 10/250 |
1.00mm² | H05V2V2-F | 10/250 |
1.50mm² | H05V2V2-F | 10/250 |
