YC-18L (Right Angle IEC C19) South Africa

YC-18L South Africa BLK QTY

Regular price Save $0.00
Shop Wholesale / Login

OEM Custom

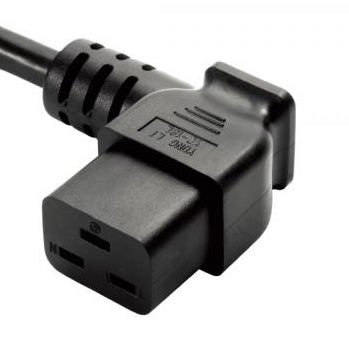

YC-18L South Africa  -  YC-18L (IEC C19 Right Angle) South Africa

VDE, ENEC & CE certified 3 prong right angle IEC C19 power cord receptacle. Built to the IEC320-C19 standard. Rated up to 20A 250V for use in South Africa. Rated up to 20A 250V but please be aware that the highest amperage available from SPDS is 13A 250V for any UK power cords.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard IEC 60320 C19 right angle
Maximum Current rating 16A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 1.0mm² through 1.5mm²
Outer Mold Material 50P PVC
Blade Material Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals ENEC, VDE, CE and many others
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity
