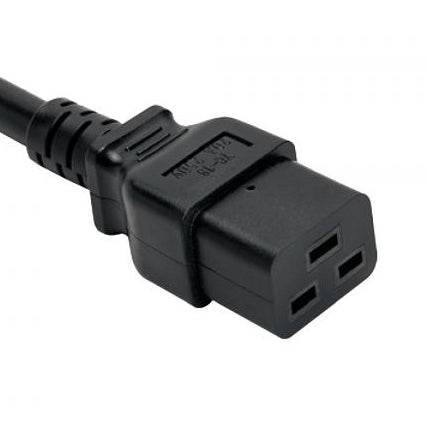

YC-18 (IEC C19) Saudi Arabia
OEM Custom: YC-18 (IEC C19) Saudi Arabia VDE, ENEC & CE certified 3 prong IEC C19 power cord receptacle. Built to the IEC320-C19 standard for use in Saudi Arabia. Rated up to 20A 250V but please be aware that the highest amperage available from SPDS is 13A 250V. For price, availability...
|
OEM Custom: YC-18 (IEC C19) Saudi Arabia VDE, ENEC & CE certified 3 prong IEC C19 power cord receptacle. Built to the IEC320-C19 standard for use in Saudi Arabia. Rated up to 20A 250V but please be aware that the highest amperage available from SPDS is 13A 250V. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | IEC 60320 C19 |
| Maximum Current rating | 16A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 1.0mm through 1.5mm |
| Outer Mold Material | 50P PVC |
| Blade Material | Brass |
| Flamability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40C through +75C |
| Approvals | ENEC certificate# 40029577, VDE license# 40005197, CE and many others |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 1.00mm² | H05VV-F | 10/250 |
| 1.5mm² | H05VV-F | 16/250 |
Have Questions?Ask An Expert
