YC-14Z (IEC C5) Europe Low Smoke Zero Halogen (LSZH)
- Fully Certified by Territory
- Made to Order
- Expert Advice Available on Product
- Fast & Secure Shipping
- Description
- Product Specification
- Shipping & Returns
- Customer Review
|

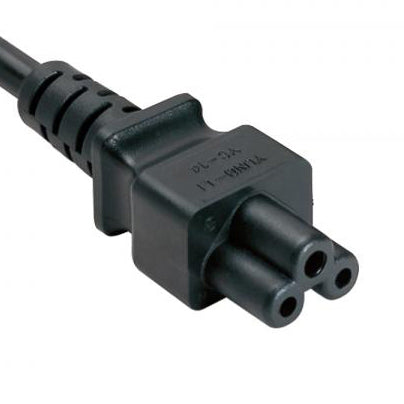

OEM Custom: YC-14Z (IEC C5) Europe Low Smoke Zero Halogen (LSZH) IEC C5 3 prong power cord receptacle with VDE European approval. Built to the IEC 60320-C5 standard. This IEC C5 power cord connector is also known as the cloverleaf or mickey mouse receptacle. Rated up to 2.5A 250V. These European IEC C5 connectors and all our Europe products carry all necessary approvals and certifications including RoHS and REACH. Meets VDE requirements for LSZH rating. For OEM and Wholesale pricing, please feel free to Live Chat with us, email us at sales@signalandpower.com, or call us at 408-871-7928 for assistance. Documentation links below.
|
| Attribute | Specification |
|---|---|
| Connector Standard | IEC 60320 C5 |
| Maximum Current rating | 2.5A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 0.75mm and 1.0mm |
| Outer Mold Material | 50P PVC |
| Blade Material | Phosphorous Bronze |
| Flamability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40C through +75C |
| Approvals | VDE LSZH |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 0.75mm² | H05Z1Z1-F | 2.5/250 |
| 1.00mm² | H05Z1Z1-F | 2.5/250 |
| Attribute | Specification |
|---|---|
| Connector Standard | IEC 60320 C5 |
| Maximum Current rating | 2.5A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 0.75mm and 1.0mm |
| Outer Mold Material | 50P PVC |
| Blade Material | Phosphorous Bronze |
| Flamability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40C through +75C |
| Approvals | VDE LSZH |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 0.75mm² | H05Z1Z1-F | 2.5/250 |
| 1.00mm² | H05Z1Z1-F | 2.5/250 |
