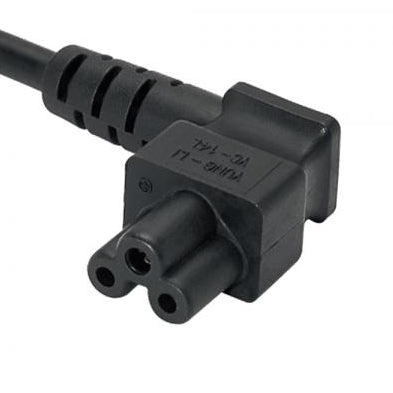

YC-14L (Right Angle IEC C5) South Africa

SIGNAL+POWER
YC-14L South Africa BLK QTY
OEM Custom
OEM Custom  YC-14L South Africa  -  YC-14L (IEC C5 Right Angle) South Africa VDE, ENEC & CE certified 3 prong right angle IEC C5 power cord receptacle. Built to the IEC 60320-C5 standard for use in South Africa. Rated up to 2.5A 250V. All our South Africa power cord products...


CONTACT US TO ORDER



customers are viewing this product

OEM Custom
YC-14L South Africa  -  YC-14L (IEC C5 Right Angle) South Africa

VDE, ENEC & CE certified 3 prong right angle IEC C5 power cord receptacle. Built to the IEC 60320-C5 standard for use in South Africa. Rated up to 2.5A 250V. All our South Africa power cord products carry all the latest certifications including RoHS and REACH compliant.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard IEC 60320 C5 right angle
Maximum Current rating 2.5A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 0.75mm² and 1.0mm²
Outer Mold Material 50P PVC
Blade Material Phosphorous Bronze
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals ENEC, VDE, CE and many others
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² H05VV-F 2.5/250
1.00mm² H05VV-F 2.5/250
Have Questions?Ask An Expert
