YC-14L (IEC C5 Right Angle) Saudi Arabia

SIGNAL+POWER
YC-14L Saudi Arabia BLK QTY
OEM Custom
OEM Custom  YC-14L Saudi Arabia  -  YC-14L (IEC C5 Right Angle) Saudi Arabia VDE, ENEC & CE certified 3 prong right angle IEC C5 power cord receptacle. Built to the IEC 60320-C5 standard for use throughout the Saudi Arabia. Rated up to 2.5A 250V. All our power cord products carry...


CONTACT US TO ORDER



OEM Custom
YC-14L Saudi Arabia  -  YC-14L (IEC C5 Right Angle) Saudi Arabia

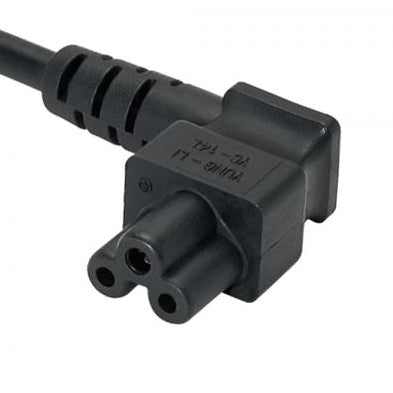

VDE, ENEC & CE certified 3 prong right angle IEC C5 power cord receptacle. Built to the IEC 60320-C5 standard for use throughout the Saudi Arabia. Rated up to 2.5A 250V. All our power cord products carry all the latest certifications including RoHS and REACH

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard IEC 60320 C5 right angle
Maximum Current rating 2.5A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 0.75mm and 1.0mm
Outer Mold Material 50P PVC
Blade Material Phosphorous Bronze
Flamability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40C through +75C
Approvals ENEC, German VDE and many others
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² H05VV-F 2.5/250
1.00mm² H05VV-F 2.5/250
