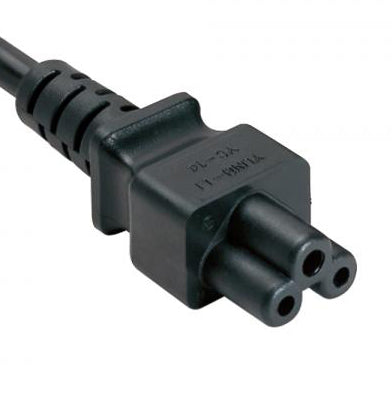

OEM Custom: YC-14 (IEC C5) Swiss VDE, ENEC & CE certified 3 prong IEC C5 power cord receptacle. Built to the IEC 60320 C5 standard. Rated up to 2.5A 250V. These Swiss IEC C5 connectors and all our Swiss products carry all necessary approvals and certifications as well as the latest REACH and RoHS approvals For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | IEC 60320 C5 |
| Maximum Current rating | 2.5A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 0.75mm and 1.0mm |
| Outer Mold Material | 50P PVC |
| Blade Material | Phosphorous Bronze |
| Flamability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40C through +75C |
| Approvals | ENEC, VDE, CE and many others |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 0.75mm² | H05VV-F | 2.5/250 |
| 1.00mm² | H05VV-F | 2.5/250 |
| Attribute | Specification |
|---|---|
| Connector Standard | IEC 60320 C5 |
| Maximum Current rating | 2.5A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 0.75mm and 1.0mm |
| Outer Mold Material | 50P PVC |
| Blade Material | Phosphorous Bronze |
| Flamability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40C through +75C |
| Approvals | ENEC, VDE, CE and many others |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 0.75mm² | H05VV-F | 2.5/250 |
| 1.00mm² | H05VV-F | 2.5/250 |
