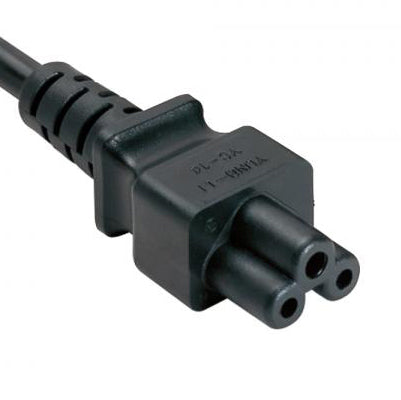

YC-14 (IEC C5) Saudi Arabia

SIGNAL+POWER
YC-14 Saudi Arabia BLK QTY
OEM Custom
OEM Custom  YC-14 Saudi Arabia  -  YC-14 (IEC C5) Saudi Arabia VDE, ENEC & CE certified 3 prong IEC C5 power cord receptacle. Built to the IEC 60320 C5 standard. Rated up to 2.5A 250V. These Saudi Arabia IEC C5 connectors and all our products carry all necessary approvals and...


CONTACT US TO ORDER



OEM Custom
YC-14 Saudi Arabia  -  YC-14 (IEC C5) Saudi Arabia

VDE, ENEC & CE certified 3 prong IEC C5 power cord receptacle. Built to the IEC 60320 C5 standard. Rated up to 2.5A 250V. These Saudi Arabia IEC C5 connectors and all our products carry all necessary approvals and certifications as well as the latest REACH and RoHS approvals

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard IEC 60320 C5
Maximum Current rating 2.5A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 0.75mm and 1.0mm
Outer Mold Material 50P PVC
Blade Material Phosphorous Bronze
Flamability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40C through +75C
Approvals ENEC, German VDE and many others
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
0.75mm² H05VV-F 2.5/250
1.00mm² H05VV-F 2.5/250
