YC-13L (Right Angle IEC C7) UK


Regular price Save $0.00
Shop Wholesale / Login

OEM Custom

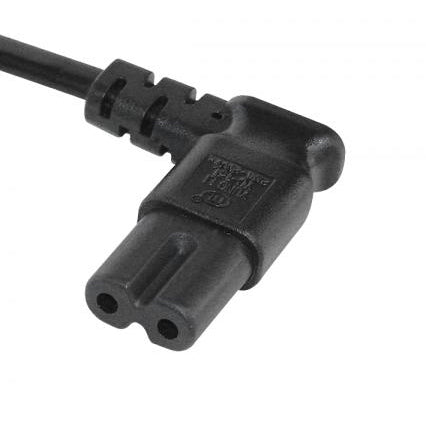

YC-13L UK  -  YC-13L (IEC C7 Right Angle) UK

VDE, ENEC & CE certified 2 prong right-angle IEC C7 power cord receptacle. Built to the IEC 60320-C7 standard. Rated up to 2.5A 250V. This IEC C7 right angle receptacle and all our UK products come with all required United Kingdom certifications as well as RoHS and REACH approvals.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard IEC 60320 C7 right angle
Maximum Current rating 2.5A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 2 wires
Available Wire Thickness 0.75mm²
Outer Mold Material 50P PVC
Blade Material Phosphorous Bronze
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals ENEC certificate# 40029577, VDE license# 40005197, CE and many others
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity
