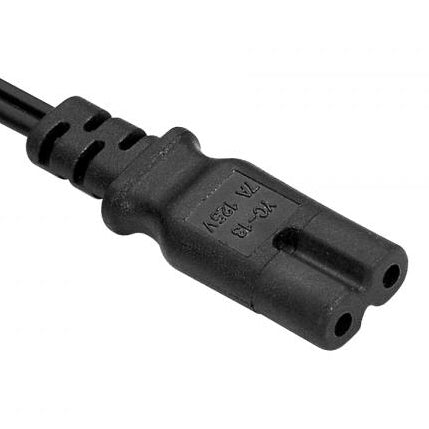

YC-13 (IEC C7) Gulf Countries
OEM Custom: YC-13 (IEC C7) Gulf Countries IEC C7 two prong power cord receptacle with all necessary approvals including CE, VDE, ENEC and many others. Built to the IEC 60320-C7 standard for use in all Middle East Gulf and European countries. Rated up to 2.5A 250V. Our IEC C7 receptacles are...
CONTACT US TO ORDER
OEM Custom: YC-13 (IEC C7) Gulf Countries IEC C7 two prong power cord receptacle with all necessary approvals including CE, VDE, ENEC and many others. Built to the IEC 60320-C7 standard for use in all Middle East Gulf and European countries. Rated up to 2.5A 250V. Our IEC C7 receptacles are molded with low profile ergonomic design and fully RoHS and REACH certified. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
Attribute | Specification |
---|---|
Connector Standard | IEC 60320 C7 |
Maximum Current rating | 2.5A |
Maximum Voltage | 250V |
Number of Poles and Wires | 2 poles, 2 wires |
Available Wire Thickness | 0.75mm² |
Outer Mold Material | 50P PVC |
Blade Material | Phosphorous Bronze |
Flammability Rating | UL 94V-0 |
Color | Black is standard but any color available |
Temperature Rating | -40°C through +75°C |
Approvals | CE, VDE, ENEC and many others |
Environmental Certifications | RoHS, REACH |
Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
---|---|---|
0.75mm² | H03VVH2-F | 10/250 |
