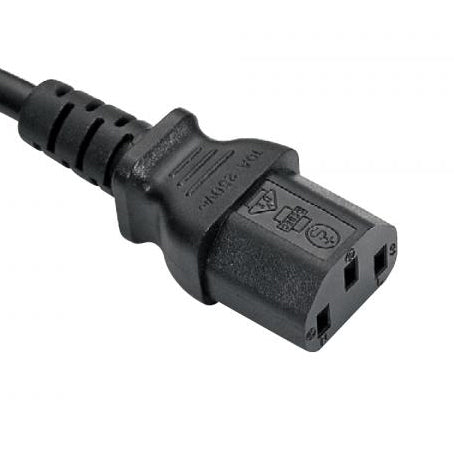

YC-12 (IEC C13) South Africa
OEM Custom: YC-12 (IEC C13) South Africa VDE, ENEC & CE certified IEC C13 power cord receptacle. Built to the IEC 60320-C13 standard for use in South Africa. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com Attribute Specification Connector Standard IEC 60320 C13 Maximum Current rating 10A...
|
OEM Custom: YC-12 (IEC C13) South Africa VDE, ENEC & CE certified IEC C13 power cord receptacle. Built to the IEC 60320-C13 standard for use in South Africa. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | IEC 60320 C13 |
| Maximum Current rating | 10A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 0.75mm² through 1.5mm² |
| Outer Mold Material | 50P PVC |
| Blade Material | Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | ENEC, VDE, CE and many others |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 0.75mm² | H05VV-F | 10/250 |
| 1.00mm² | H05VV-F | 10/250 |
| 1.50mm² | H05VV-F | 10/250 |
