YC-12 (IEC C13) Brazil

SIGNAL+POWER
YC-12 Brazil BLK QTY
OEM Custom
OEM Custom  YC-12 Brazil  -  YC-12 (IEC C13) Brazil Brazil InMetro certified IEC C13 3 prong receptacle for power cords. Built to IEC 60320-C13 standard for use in Brazil. Rated up to 10A 250V. For price, availability or consultation contact us at: Phone: 888-788-4884   Email: sales@signalandpower.com Attribute Specification Connector Standard...


CONTACT US TO ORDER



customers are viewing this product

OEM Custom
YC-12 Brazil  -  YC-12 (IEC C13) Brazil

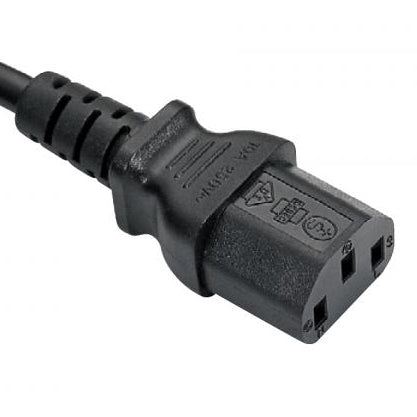

Brazil InMetro certified IEC C13 3 prong receptacle for power cords. Built to IEC 60320-C13 standard for use in Brazil. Rated up to 10A 250V.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard IEC 60320 C13
Maximum Current rating 10A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 0.75mm² through 1.5mm²
Outer Mold Material 50P PVC
Blade Material Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals Brazil UL registration# OCP-0029 and certificate# 41-CA-S0066
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity
Have Questions?Ask An Expert
