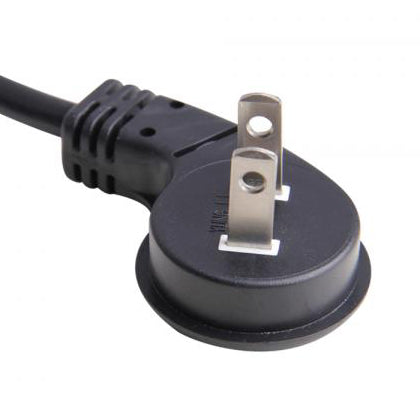

Ultra Low Profile Angled NEMA 1-15P Plug (YP-11L-9)

Vendor: SIGNAL+POWER

SKU: YP-11L-9 North America

Product Type: OEM Custom

OEM Custom: Ultra Low Profile Angled NEMA 1-15P Plug (YP-11L-9) Ultra low profile angled NEMA 1-15P cUL approved power cord plug. These new plugs are built to NEMA 1-15P standards and rated up to 15A 125V, 13A 125V or 10A 125V. Our ultra low profile NEMA 1-15P plugs are fully molded...

Description

OEM Custom: Ultra Low Profile Angled NEMA 1-15P Plug (YP-11L-9)

Ultra low profile angled NEMA 1-15P cUL approved power cord plug. These new plugs are built to NEMA 1-15P standards and rated up to 15A 125V, 13A 125V or 10A 125V. Our ultra low profile NEMA 1-15P plugs are fully molded with a low profile ergonomic design and are perfect for tight spaces or where you want a device as flat as possible against a wall. The offset or angled design is perfect for getting devices as close as possible to the wall but also great for plugging into power strips without interfering with the neighboring outlet.

The NEMA 1-15 ultra low profile angled molded power cord plug is stocked in the following configuration:

NEMA 1-15P (angled) to IEC C7 (down angle): P-11L913D-06B

Any configuration can be made so if you don't see what you are looking for, please contact us with your preferred configuration:

Phone: 888-788-4884 Email: sales@signalandpower.com

Attribute	Specification
Connector Standard	NEMA 1-15P ultra low profile angled plug
Maximum Current rating	15A
Maximum Voltage	125V
Number of Poles and Wires	2 poles, 2 wires
Available Wire Thickness	14AWG through 18AWG
Outer Mold Material	35P PVC
Blade Material	Nickel Coated Brass
Flammability Rating	UL 94V-0
Color	Black is standard but any color available
Temperature Rating	-40°C through +75°C
Approvals	cUL file# E152635
Environmental Certifications	RoHS, REACH
Testing	Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors	Cord Type	Electrical Rating (Amps/Volts)
18/2	SPT-2, SPT-3, SVT, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW (All TPE material), SPT-2, SPT-3, NISPT-2, SVT, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SJO, SJOW, SJOO SJOOW, EVT, EVJT, EVE, EVJE	10/125
16/2	SPT-2, SPT-3, NISPT-2, SVT, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW (All TPE material), SPT-2, SPT-3, NISPT-2, SVT, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SJO, SJOW, SJOO SJOOW, EVT, EVJT, EVE, EVJE	13/125
14/2	SPT-3, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW (All TPE material), SPT-3, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SJO, SJOW, SJOO SJOOW, EVT, EVJT, EVE, EVJE	15/125
