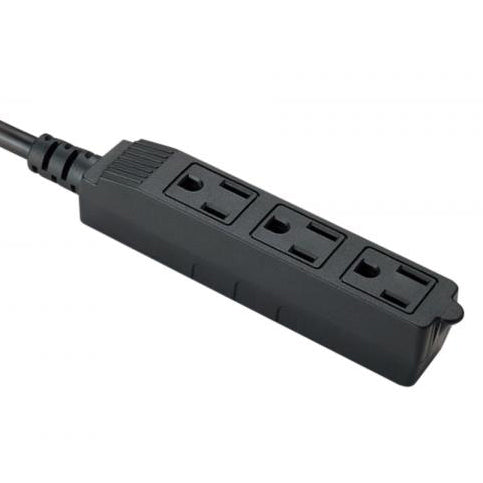

Triple Tap NEMA 5-15R Power Cords (YC-05)

SIGNAL+POWER
YC-05 North America
OEM Custom
OEM Custom: Triple Tap NEMA 5-15R Power Cords (YC-05) UL and CSA certified 3 prong 3 way NEMA 5-15R inlet receptacle strip for power cords. Built to NEMA 5-15R standard. Rated up to 15A 125V or 13A 125V depending upon wire gauge selected. For price, availability or consultation contact us at:...


CONTACT US TO ORDER



OEM Custom: Triple Tap NEMA 5-15R Power Cords (YC-05)

UL and CSA certified 3 prong 3 way NEMA 5-15R inlet receptacle strip for power cords. Built to NEMA 5-15R standard. Rated up to 15A 125V or 13A 125V depending upon wire gauge selected.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard Three NEMA 5-15R polarized receptacles all in one mold
Maximum Current rating 15A
Maximum Voltage 125V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 12 through 16AWG
Outer Mold Material 35P PVC
Blade Material Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
16/3 SJT, SJTW, SJTO, SJTOW ST, STW, SO, STOW, SOW, SOOW 13/125
14/3 SJT, SJTW, SJTO, SJTOW ST, STW, SO, STOW, SOW, SOOW 15/125
12/3 SJT, SJTW, SJTO, SJTOW ST, STW, SO, STOW, SOW, SOOW 15/125
