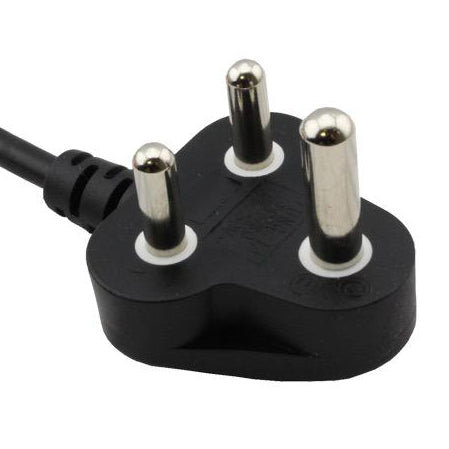

SANS 164-1 16A Power Cord Plug (YP-80)
CONTACT US TO ORDER
OEM Custom: SANS 164-1 16A Power Cord Plug (YP-80) - South Africa SANS 164-1, BS546 and SANS 60799 South Africa three prong industrial plug with SABS certification. Rated up to 16A 250V or 10A 250V. This South Africa power cord plug is the most common one used in South Africa and is also known as the SANS 60799 plug standard. Our South Africa power cord products are fully molded with a low profile ergonomic design and RoHS and REACH compliant. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
Attribute | Specification |
---|---|
Connector Standard | South Africa SANS 164-1 plug (same as British standard BS546) |
Maximum Current rating | 16A |
Maximum Voltage | 250V |
Number of Poles and Wires | 2 poles, 3 wires |
Available Wire Thickness | 0.75mm² through 1.5mm² |
Outer Mold Material | 50P PVC |
Blade Material | Nickel Coated Brass |
Flammability Rating | UL 94V-0 |
Color | Black is standard but any color available |
Temperature Rating | -40°C through +75°C |
Approvals | South Africa SABS |
Environmental Certifications | RoHS, REACH |
Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
---|---|---|
0.75mm² | H05VV-F | 10/250 |
1.00mm² | H05VV-F | 10/250 |
1.50mm² | H05VV-F | 16/250 |
