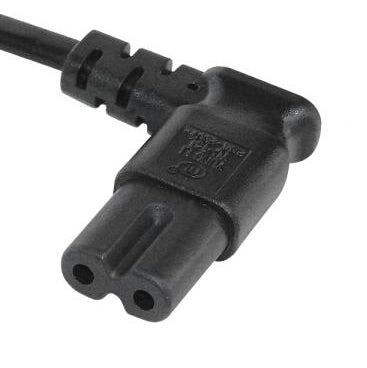

Right Angle IEC C7 Power Cord Receptacle (YC-13L)
OEM Custom: Right Angle IEC C7 Power Cord Receptacle (YC-13L) IEC C7 right angle 2 prong power cord receptacle with cUL approval. Built to the IEC 60320-C7 standard. Rated up to 10A 125V. This IEC C7 right angle receptacle and all our North American products come with all required USA, Canada...
CONTACT US TO ORDER
OEM Custom: Right Angle IEC C7 Power Cord Receptacle (YC-13L) IEC C7 right angle 2 prong power cord receptacle with cUL approval. Built to the IEC 60320-C7 standard. Rated up to 10A 125V. This IEC C7 right angle receptacle and all our North American products come with all required USA, Canada and Mexico certifications as well as RoHS and REACH approvals. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
Attribute | Specification |
---|---|
Connector Standard | IEC 60320 C7 right angle |
Maximum Current rating | 15A |
Maximum Voltage | 125V |
Number of Poles and Wires | 2 poles, 2 wires |
Available Wire Thickness | 18AWG |
Outer Mold Material | 35P PVC |
Blade Material | Phosphorous Bronze |
Flammability Rating | UL 94V-0 |
Color | Black is standard but any color available |
Temperature Rating | -40°C through +75°C |
Approvals | cUL file# E152635, CSA file# LL76398 |
Environmental Certifications | RoHS, REACH |
Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
---|---|---|
18/2 | SPT-1, SPT-2, NISPT-2, SVT, SJT (All TPE material), SPT-1, SPT-1W, SPT-2, SPT-2W, NISPT-1, NISPT-2, SVT, SJT | 7/125 or 2.5/250 |
