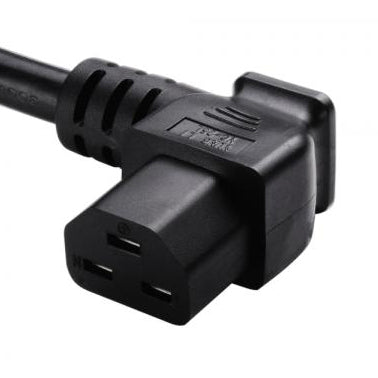

YC-25L North America  -  Right Angle IEC C21 Power Cord Receptacle (YC-25L)

IEC C21 right angle 3 prong power cord receptacle with cUL certification. Built to the right angle IEC60320-C21 standard. Rated up to 20A 250V. Our right angle IEC C21 receptacles are fully molded with a low profile ergonomic design and RoHS and REACH compliant. The IEC C21 power cord receptacle is similar to the C19 but it is designed for use in higher temperature applications. The maximum pin temperature of the appliance inlet is 65°C with a C19 but up to 155°C for the C21.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard IEC 60320 C21 right angle
Maximum Current rating 20A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 12AWG through 16AWG
Outer Mold Material 50P PVC
Blade Material Phosphorous Bronze
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +155°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity
