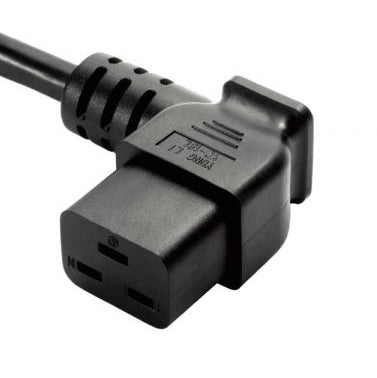

OEM Custom: Right Angle IEC C19 Power Cord Receptacle (YC-18L) cUL certified 3 prong right angle IEC C19 power cord receptacle. Built to the IEC320-C19 standard. Rated up to 20A 250V for use in North America and South America. Our right angle C19 power cord receptacles are fully molded with a low profile ergonomic design. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | IEC 60320 C19 right angle |
| Maximum Current rating | 20A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 12AWG through 16AWG |
| Outer Mold Material | 50P PVC |
| Blade Material | Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | cUL file# E152635, ENEC certificate# 40028725 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 16/3 | SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 | 13/125 or 250 |
| 15/3 | SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 | 16/125 or 250 |
| 14/3 | SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 | 16/125 or 250 |
| 12/3 | SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 | 20/125 or 250 |
| Attribute | Specification |
|---|---|
| Connector Standard | IEC 60320 C19 right angle |
| Maximum Current rating | 20A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 12AWG through 16AWG |
| Outer Mold Material | 50P PVC |
| Blade Material | Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | cUL file# E152635, ENEC certificate# 40028725 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 16/3 | SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 | 13/125 or 250 |
| 15/3 | SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 | 16/125 or 250 |
| 14/3 | SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 | 16/125 or 250 |
| 12/3 | SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 | 20/125 or 250 |
