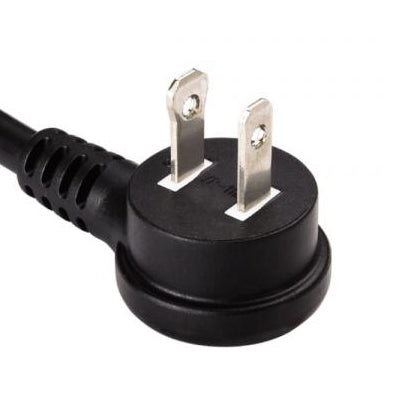

Polarized NEMA 1-15P Right Angle Plug (YP-11R-7)

Vendor: SIGNAL+POWER

SKU: YP-11R-7 North America

Product Type: OEM Custom

OEM Custom: Polarized NEMA 1-15P Right Angle Plug (YP-11R-7) UL and CSA certified USA 2 prong right angle polarized NEMA 1-15P power cord plug. Rated up to 15A 125V, 13A 125V or 10A 125V. Our right angle polarized NEMA 1-15P plugs are fully molded with a low profile ergonomic design and...

Description

OEM Custom: Polarized NEMA 1-15P Right Angle Plug (YP-11R-7)

UL and CSA certified USA 2 prong right angle polarized NEMA 1-15P power cord plug. Rated up to 15A 125V, 13A 125V or 10A 125V. Our right angle polarized NEMA 1-15P plugs are fully molded with a low profile ergonomic design and come in a big variety or orientations, sizes and angles.

For price, availability or consultation contact us at:

Phone: 888-788-4884 Email: sales@signalandpower.com

Attribute	Specification
Connector Standard	NEMA 1-15P right angle polarized plug
Maximum Current rating	15A
Maximum Voltage	125V
Number of Poles and Wires	2 poles, 2 wires
Available Wire Thickness	14AWG through 18AWG
Outer Mold Material	35P PVC
Blade Material	Nickel Coated Brass
Flammability Rating	UL 94V-0
Color	Black is standard but any color available
Temperature Rating	-40°C through +75°C
Approvals	cUL file# E152635
Environmental Certifications	RoHS, REACH
Testing	Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors	Cord Type	Electrical Rating (Amps/Volts)
18/2	SPT-1, SPT-2, SVT, SJT, SJTW, SJTO, SJTOW (All TPE material), SPT-1, SPT-1W, SPT-2, SPT-2W, NISPT-1, NISPT-2, SVT, SJT, SJTW, SJTO, SJTOW, SJ, SJO, SJOW, EVT, EVJT, EVE, EVJE	10/125
16/2	SPT-2, NISPT-2, SJT, SJTW, SJTO, SJTOW (All TPE material), SPT-2, SPT-2W, NISPT-2, SJT, SJTW, SJTO, SJTOW, SJ, SJO, SJOW, EVT, EVJT, EVE, EVJE	13/125
14/2	SJT, SJTW, SJTO, SJTOW (All TPE material), SJT, SJTW, SJTO, SJTOW, SJ, SJO, SJOW, EVT, EVJT, EVE, EVJE	15/125
