North America NISPT-2 16/2 16AWG 2C
CONTACT US TO ORDER

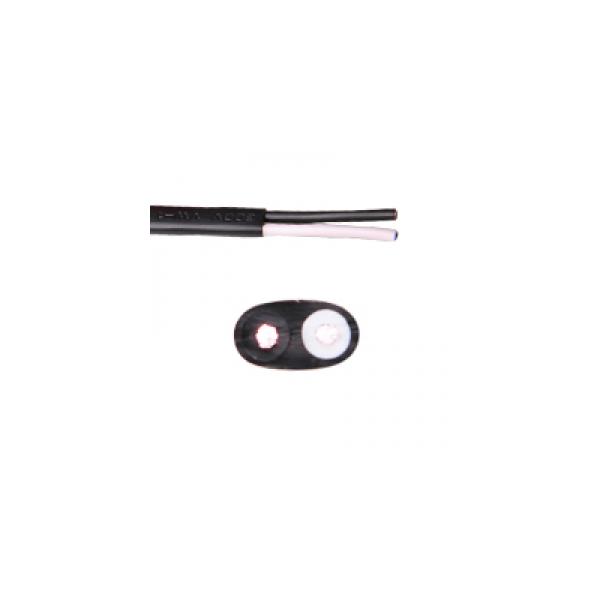

Bulk Power Cord Wire: North America NISPT-2 16/2 16AWG 2C NISPT-2 bulk power cord wire for use in the USA and Canada. Our NISPT-2 16 gauge bulk flexible cable is the same as SPT-2 two conductor wire except it is double insulated for better reduction of interference. The NISPT-2 16/2 product is commonly used for small appliances, TVs, radios and light duty products that only use two conductor power cords. The difference between NISPT-2 and SPT-2 is that the NISPT-2 wire is double insulated. The individual conductors have jackets and then those are covered with an outer jacket. With SPT-2, the conductors are contained in the outer jacket only with no inside insulation. This 16 gauge 2 conductor NISPT-2 power cord wire is sold by the foot on 36" or 24" wooden spools. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
Attribute | Specification |
---|---|
Country Category | North America |
Voltage | 300V |
Amperage | (under 50ft long) 13 amps |
Cord Length | Bulk |
Wire Jacket Standard | NISPT-2 |
Gauge | 16AWG |
Conductors | 2 |
Copper Wire Stranding | 65 strands of 0.16mm² wire |
Conductors Material | Stranded and Annealed bare Copper |
Conductor Insulation Material | PVC |
Jacket Material | PVC |
Jacket Temp. Rating | 105°C |
Wire Outer Diameter | 4.1mm by 7.9mm |
Conductor Color Code | NACC (black, white) |
36 inch Spool Maximum Quantity | 27,880 feet |
24 inch Spool Maximum Quantity | 6,970 feet |
Certifications | cUL, CSA |
Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015 |
Country of Origin | China |
