YP-52 North America  -  NEMA L6-30P Power Cord Plug (YP-52)

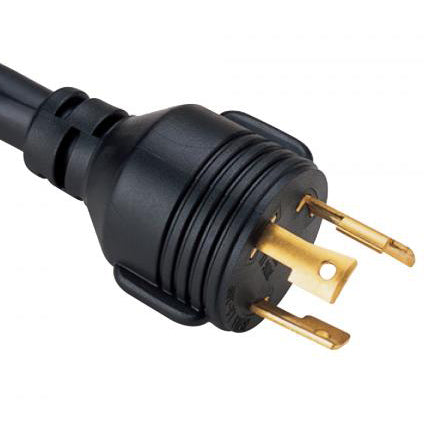

NEMA L6-30P twist lock power cord plug with cUL approval. Built to the NEMA L6-30P plug standard. Rated up to 30A 250V. These NEMA L6-30P power cord plugs are fully molded with a low profile ergonomic shape, RoHS and REACH compliant.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard NEMA L6-30P three prong locking plug
Maximum Current rating 30A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 8AWG through 12AWG
Outer Mold Material 35P PVC
Blade Material Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
12/3 SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, (All TPE material), SJT, SJTO, SJTW, SJTOW, SJTOOW ST, STW, STOW, STOOW, SJ, SJO, SJOW, SJOO, SJOOW, S, SOO, SO, SOW, SOOW, EVT, EVJT, EVE, EVJE 25/250
10/3 SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW (All TPE material), SJT, SJTO, SJTW, SJTOOW, SJTOW, ST, STW, STOW, STOOW, SJ, SJO, SJOW SJOO, SJOOW, S, SO, SOW, SOO, SOOW, EVT, EVE 30/250
8/3 ST, STW, STOW, STOOW (All TPE material), ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, EVT, EVE 30/250
