NEMA L6-20R Power Cord Receptacle (YC-53)

YC-53 North America BLK QTY

Regular price Save $0.00
Shop Wholesale / Login

OEM Custom
YC-53 North America  -  NEMA L6-20R Power Cord Receptacle (YC-53)

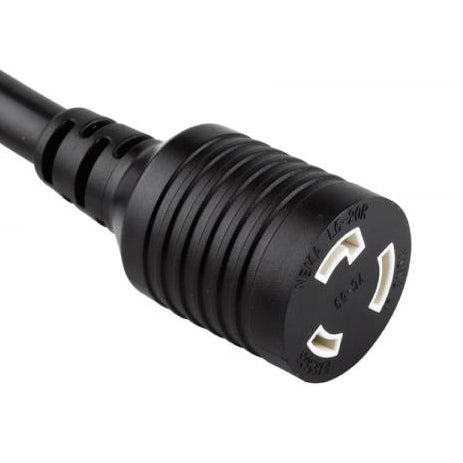

NEMA L6-20R cUL certified three prong USA twist lock power cord receptacle. Built to the NEMA L6-20R standard. Rated up to 20A 250V. These NEMA L6-20R power cords are fully molded with a low profile ergonomic shape.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard NEMA L6-20R 3 prong locking receptacle
Maximum Current rating 20A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 12AWG through 16AWG
Outer Mold Material 35P PVC
Blade Material Nickel Coated Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity
