NEMA L6-15P Power Cord Plug (YP-54)

SIGNAL+POWER
YP-54 North America BLK QTY
OEM Custom
OEM Custom  YP-54 North America  -  NEMA L6-15P Power Cord Plug (YP-54) NEMA L6-15P twist lock power cord plug with cUL approval. Built to the NEMA L6-15P standard. Rated up to 15A 250V. These NEMA L6-15P power cords are fully molded with a low profile ergonomic shape with RoHS and...


CONTACT US TO ORDER



OEM Custom
YP-54 North America  -  NEMA L6-15P Power Cord Plug (YP-54)

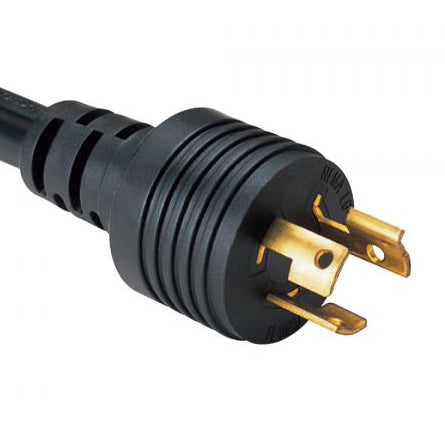

NEMA L6-15P twist lock power cord plug with cUL approval. Built to the NEMA L6-15P standard. Rated up to 15A 250V. These NEMA L6-15P power cords are fully molded with a low profile ergonomic shape with RoHS and REACH compliance.

The NEMA L6-15 molded power cord plug is stocked in the following configurations:

NEMA L6-15P to IEC C13:  P-5412-08B

Any configuration can be made so if you don't see what you are looking for, please contact us with your preferred configuration:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard NEMA L6-15P 3 prong locking plug
Maximum Current rating 15A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 12 through 18AWG
Outer Mold Material 35P PVC
Blade Material Nickel Coated Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
18/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW (All TPE material), SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOO, SJOOW, S, SO, SOW, SOOW, EVT, EVJT, EVE, EVJE 10/250
16/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW (All TPE material), SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOO, SJOOW, S, SO, SOW, SOOW, EVT, EVJT, EVE, EVJE 13/250
14/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW (All TPE material), SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOO, SJOOW, S, SO, SOW, SOOW, EVT, EVJT, EVE, EVJE 15/250
12/3 SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOW, SJOO, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, EVT, EVJT, EVE, EVJE 30/250
