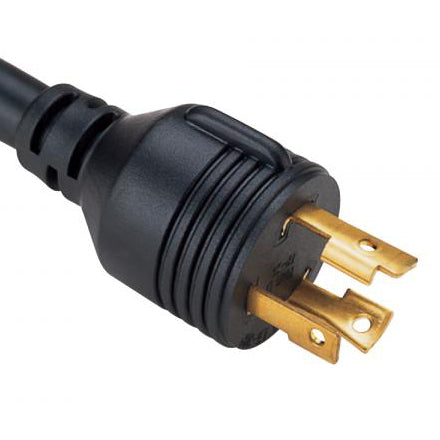

YP-55 North America  -  NEMA L5-30P Power Cord Plug (YP-55)

NEMA L5-30P twist lock power cord plug with cUL approval. Built to the NEMA L5-30P standard. Rated up to 30A 125V. These NEMA L5-30P power cords are fully molded with a low profile ergonomic shape with RoHS and REACH compliance. You can buy our NEMA L5-30P power cords in standard and custom configurations.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard NEMA L5-30P three prong locking plug
Maximum Current rating 30A
Maximum Voltage 125V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 8AWG through 12AWG
Outer Mold Material 35P PVC
Blade Material Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
12/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW (All TPE material), SJT, SJTO, SJTW, SJTOW, ST, STW, STOW, SO, SOW, SOOW, EVT, EVJT, EVE, EVJE 25/125
10/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW (All TPE material), SJT, SJTO, SJTW, SJTOW, ST, STW, STOW, EVT, EVE 30/125
8/3 ST, STW, STOW (All TPE material), ST, STW, STOW, EVT, EVE 30/125
