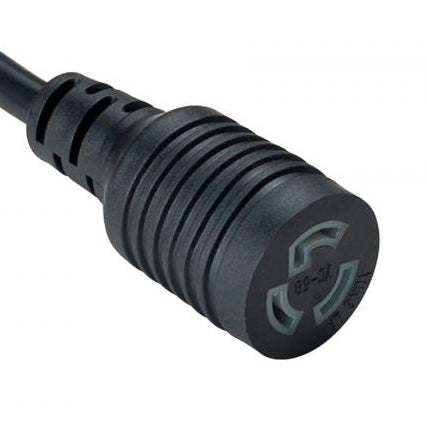

YC-58 North America  -  NEMA L5-15R Power Cord Receptacle (YC-58)

NEMA L5-15R cUL certified USA 15 amp twist lock power cord receptacle. Built to the NEMA L5-15R standard. Rated up to 15A 125V. These NEMA L5-15R power cords are fully molded with a low profile ergonomic shape.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard NEMA L5-15R 3 prong locking receptacle
Maximum Current rating 15A
Maximum Voltage 125V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 10 through 18AWG
Outer Mold Material 35P PVC
Blade Material Nickel Coated Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
18/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, SVT 10/125
16/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW 13/125
14/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW 15/125
12/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW 30/125 or 250
10/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW 15/125
