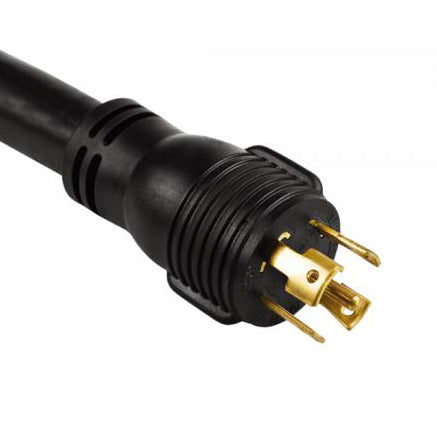

NEMA L22-30P Power Cord Plug (YP-09)
- Fully Certified by Territory
- Made to Order
- Expert Advice Available on Product
- Fast & Secure Shipping
- Description
- Product Specification
- Shipping & Returns
- Customer Review
|
OEM Custom: NEMA L22-30P Power Cord Plug (YP-09) NEMA L22-30P cUL approved twist lock power cord plug. Built to NEMA L22-30P standard. Rated up to 30A 277/480V 3-Phase. These L22-30 power cords are fully molded with a low profile ergonomic shape. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | NEMA L22-30P locking 5 prong plug |
| Maximum Current rating | 30A |
| Maximum Voltage | 480V or 277V 3 phase |
| Number of Poles and Wires | 4 poles, 5 wires |
| Available Wire Thickness | 8AWG through 14AWG |
| Outer Mold Material | 35P PVC |
| Blade Material | Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | cUL file# E152635 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 14/5 | SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW (All TPE material), SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW, SJ, SJO, SJOW, SJOO, SJOOW, S, SO, SOW, SOO, SOOW, EVT, EVJT, EVE, EVJE | 15A/277/480V; 3-phase |
| 12/5 | SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW, SJ, SJO, SJOW, SJOO, SJOOW, S, SO, SOW, SOO, SOOW, EVT, EVJT, EVE, EVJE | 20A/277/480V; 3-phase |
| 10/5 | SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOOW (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOOW, SJ, SJO, SJOW, SJOO, SJOOW, S, SO, SOW, SOO, SOOW, EVT, EVE | 25A/277/480V; 3-Phase |
| 8/5 | ST, STW, STO, STOW, STOOW (All TPE material), ST, STW, STO, STOW, STOOW, S, SO, SOW, SOO, SOOW, EVT, EVE | 25A/277/480V; 3-Phase |
| Attribute | Specification |
|---|---|
| Connector Standard | NEMA L22-30P locking 5 prong plug |
| Maximum Current rating | 30A |
| Maximum Voltage | 480V or 277V 3 phase |
| Number of Poles and Wires | 4 poles, 5 wires |
| Available Wire Thickness | 8AWG through 14AWG |
| Outer Mold Material | 35P PVC |
| Blade Material | Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | cUL file# E152635 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 14/5 | SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW (All TPE material), SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW, SJ, SJO, SJOW, SJOO, SJOOW, S, SO, SOW, SOO, SOOW, EVT, EVJT, EVE, EVJE | 15A/277/480V; 3-phase |
| 12/5 | SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOO, STOOW, SJ, SJO, SJOW, SJOO, SJOOW, S, SO, SOW, SOO, SOOW, EVT, EVJT, EVE, EVJE | 20A/277/480V; 3-phase |
| 10/5 | SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOOW (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, ST, STW, STO, STOW, STOOW, SJ, SJO, SJOW, SJOO, SJOOW, S, SO, SOW, SOO, SOOW, EVT, EVE | 25A/277/480V; 3-Phase |
| 8/5 | ST, STW, STO, STOW, STOOW (All TPE material), ST, STW, STO, STOW, STOOW, S, SO, SOW, SOO, SOOW, EVT, EVE | 25A/277/480V; 3-Phase |
