NEMA L22-20P Power Cord Plug (YP-62)

YP-62 North America BLK QTY

Regular price Save $0.00
Shop Wholesale / Login

OEM Custom
YP-62 North America  -  NEMA L22-20P Power Cord Plug (YP-62)

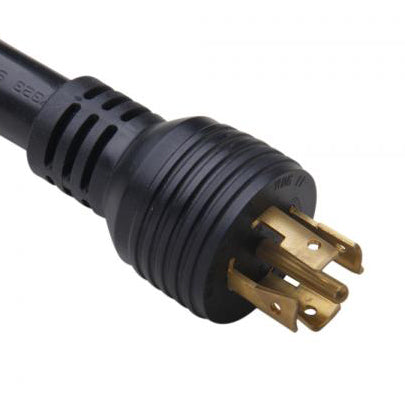

NEMA L22-20P twist lock 20 amp power cord plug with cUL certification. Built to the NEMA L22-20P standard. Rated up to 20A 277/480V 3-Phase. These NEMA L22-20 power cords are fully molded with a low profile ergonomic shape with RoHS and REACH compliance.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard NEMA L22-20 Locking 5 prong plug
Maximum Current rating 20A
Maximum Voltage 277V or 480V 3 phase
Number of Poles and Wires 4 poles, 5 wires
Available Wire Thickness 10AWG through 14 AWG
Outer Mold Material 35P PVC
Blade Material Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity
