NEMA L21-30R Power Cord Receptacle (YC-07)

YC-07 North America BLK QTY

Regular price Save $0.00
Shop Wholesale / Login

OEM Custom
YC-07 North America  -  NEMA L21-30R Power Cord Receptacle (YC-07)

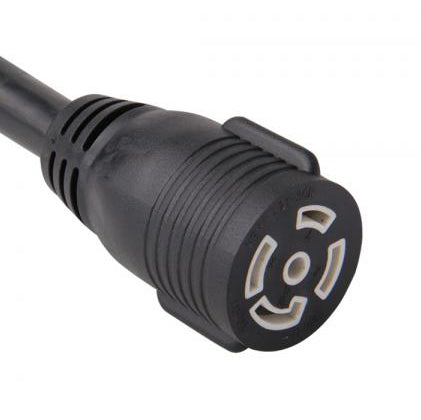

NEMA L21-30R twist lock 30 amp power cord receptacle with UL certification. Built to the NEMA L21-30R standard. Rated up to 30A 120/208V 3-Phase. These NEMA L21-30 power cords are fully molded with a low profile ergonomic shape with RoHS2 and REACH compliance.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard NEMA L21-30R locking 5 prong receptacle
Maximum Current rating 30A
Maximum Voltage 120V or 208V 3 Phase
Number of Poles and Wires 4 poles, 5 wires
Available Wire Thickness 8AWG and 10AWG
Outer Mold Material 35P PVC
Blade Material Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity
