YC-06R North America  -  NEMA L21-20R Power Cord Receptacle (YC-06R)

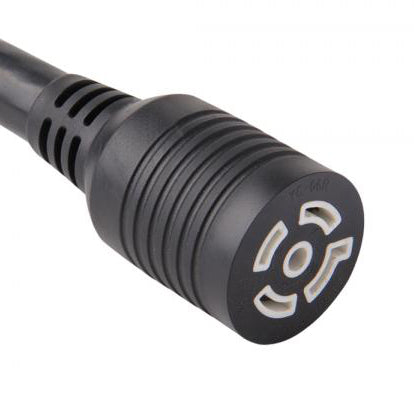

NEMA L21-20R twist lock 20 amp power cord receptacle with UL approval. Built to the NEMA L21-20R standard. Rated up to 20A 120/208V 3-Phase. These NEMA L21-20R power cords are fully molded with a low profile ergonomic shape with RoHS and REACH compliance.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard NEMA L21-20R locking 5 prong receptacle
Maximum Current rating 20A
Maximum Voltage 120V or 208V 3 Phase
Number of Poles and Wires 4 poles, 5 wires
Available Wire Thickness 10AWG through 14 AWG
Outer Mold Material 35P PVC
Blade Material Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity
