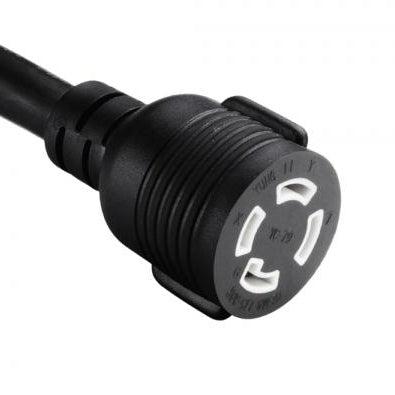

NEMA L15-30R Power Cord Receptacle (YC-79)

YC-79
| FAST & SECURE SHIPPING
| PREMIUM QUALITY PRODUCT
  • Fully Certified by Territory
  • Made to Order
  • Expert Advice Available on Product
  • Fast & Secure Shipping
Have Questions? Ask an Expert:
ecommerce@signalandpower.com +1 (408) 871-7928

OEM Custom: NEMA L15-30R Power Cord Receptacle (YC-79)

NEMA L15-30R cUL certified twist lock USA 30 amp power cord receptacle. Built to the NEMA L15-30R standard. Rated up to 30A 250V. These NEMA L15-30R power cords are fully molded with a low profile ergonomic shape.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard NEMA L15-30R 4 prong locking receptacle
Maximum Current rating 25A
Maximum Voltage 250V
Number of Poles and Wires 3 poles, 4 wires
Available Wire Thickness 10AWG and 12AWG
Outer Mold Material 35P PVC
Blade Material Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
12/4 SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW 25/250
10/4 SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW 25/250

Attribute Specification
Connector Standard NEMA L15-30R 4 prong locking receptacle
Maximum Current rating 25A
Maximum Voltage 250V
Number of Poles and Wires 3 poles, 4 wires
Available Wire Thickness 10AWG and 12AWG
Outer Mold Material 35P PVC
Blade Material Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
12/4 SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW 25/250
10/4 SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW 25/250
