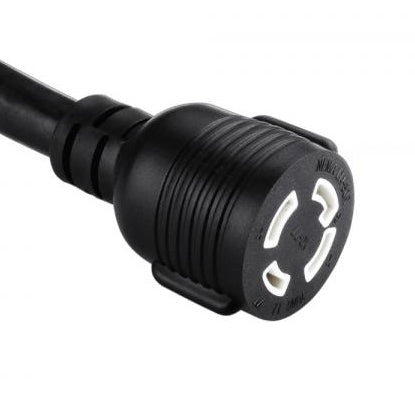

NEMA L14-30R Power Cord Receptacle (YC-77)
- Fully Certified by Territory
- Made to Order
- Expert Advice Available on Product
- Fast & Secure Shipping
- Description
- Product Specification
- Shipping & Returns
- Customer Review
|
OEM Custom: NEMA L14-30R Power Cord Receptacle (YC-77) NEMA L14-30R cUL certified twist lock USA 30 amp power cord receptacle. Built to the NEMA L14-30R standard. Rated up to 30A 125/250V. These NEMA L14-30R power cords are fully molded with a low profile ergonomic shape. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | NEMA L14-30R 4 prong locking receptacle |
| Maximum Current rating | 30A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 3 poles, 4 wires |
| Available Wire Thickness | 10AWG and 12AWG |
| Outer Mold Material | 35P PVC |
| Blade Material | Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | cUL file# E152635 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 12/4 | SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW | 25/125 |
| 10/4 | SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW | 30/125 |
| Attribute | Specification |
|---|---|
| Connector Standard | NEMA L14-30R 4 prong locking receptacle |
| Maximum Current rating | 30A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 3 poles, 4 wires |
| Available Wire Thickness | 10AWG and 12AWG |
| Outer Mold Material | 35P PVC |
| Blade Material | Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | cUL file# E152635 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 12/4 | SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW | 25/125 |
| 10/4 | SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW | 30/125 |
