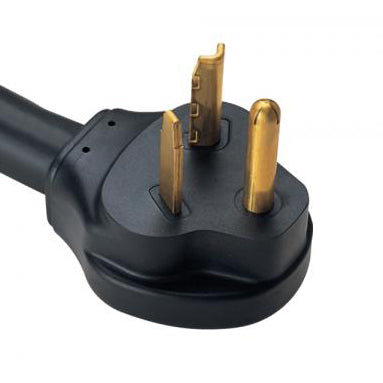

NEMA 7-30P Power Cord Plug (YP-94L)
OEM Custom: NEMA 7-30P Power Cord Plug (YP-94L) NEMA 7-30P molded heavy duty three prong power cord plug with cUL approval. Rated up to 30A 277V. Built to the NEMA 7-30P standard. Our NEMA 7-30P plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant. For...
CONTACT US TO ORDER
OEM Custom: NEMA 7-30P Power Cord Plug (YP-94L) NEMA 7-30P molded heavy duty three prong power cord plug with cUL approval. Rated up to 30A 277V. Built to the NEMA 7-30P standard. Our NEMA 7-30P plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
Attribute | Specification |
---|---|
Connector Standard | NEMA 7-30P 3 prong down angle plug |
Maximum Current rating | 30A |
Maximum Voltage | 277V |
Number of Poles and Wires | 2 poles, 3 wires |
Available Wire Thickness | 8AWG through 12AWG |
Outer Mold Material | 35P PVC |
Blade Material | Brass |
Flammability Rating | UL 94V-0 |
Color | Black is standard but any color available |
Temperature Rating | -40°C through +75°C |
Approvals | cUL file# E152635 |
Environmental Certifications | RoHS, REACH |
Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
---|---|---|
12/3 | SPT-3, SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW (All TPE material), SPT-3, SJT, SJTW, SJTO, SJTOW, SJTOOW, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, SO, SOW, SOO, SOOW, EVT, EVJT, EVE, EVJE | 25/277 |
10/3 | SPT-3, SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW (All TPE material), SPT-3, SJT, SJTW, SJTO, SJTOW, SJTOOW, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, SO, SOW, SOO, SOOW, EVT, EVE | 30/277 |
8/3 | ST, STW, STOW, STOOW (All TPE material), ST, STW, STOW, STOOW, SO, SOW, SOO, SOOW, EVT, EVE | 30/277 |
