OEM Custom

NEMA 6-20P Up Angle Power Cord Plug (YP-16L)

YP-16L North America BLK QTY

Regular price Save $0.00
Shop Wholesale / Login

OEM Custom
YP-16L North America  -  NEMA 6-20P Up Angle Power Cord Plug (YP-16L)

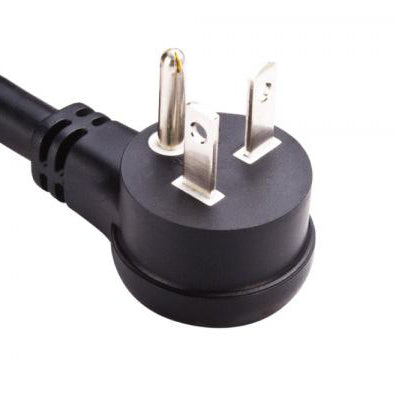

NEMA 6-20P up angle power cord plug with cUL certification. Rated up to 20A 250V. Built to the NEMA 6-20P standard. Our NEMA 6-20P power cord plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard NEMA 6-20P up angle plug
Maximum Current rating 20A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 12AWG through 18AWG
Outer Mold Material 35P PVC
Blade Material Nickel Coated Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity
