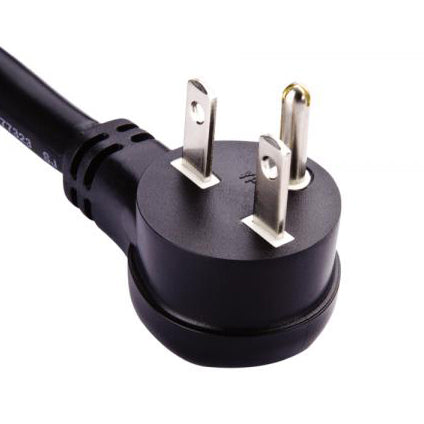

NEMA 6-15P Right Angle Plug (YP-19L-3)

SIGNAL+POWER
YP-19L-3 North America BLK QTY
OEM Custom
OEM Custom  YP-19L-3 North America  -  NEMA 6-15P Right Angle Plug (YP-19L-3) NEMA 6-15P USA 3 prong right angle power cord plug with cUL certification. Rated up to 15A 250V. Built to the NEMA 6-15P plug standard. Our NEMA 6-15P power cord plugs are fully molded with a low profile...


CONTACT US TO ORDER



OEM Custom
YP-19L-3 North America  -  NEMA 6-15P Right Angle Plug (YP-19L-3)

NEMA 6-15P USA 3 prong right angle power cord plug with cUL certification. Rated up to 15A 250V. Built to the NEMA 6-15P plug standard. Our NEMA 6-15P power cord plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard NEMA 6-15P right angle 3P plug
Maximum Current rating 15A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 12AWG through 18AWG
Outer Mold Material 35P PVC
Blade Material Nickel Coated Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
18/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW (All TPE material), SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, EVT, EVJT, EVE, EVJE 10/250
16/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW (All TPE material), SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, EVT, EVJT, EVE, EVJE 13/250
14/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, SPT-3, EVT, EVJT, EVE, EVJE 15/250
12/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, SPT-3, EVT, EVJT, EVE, EVJE 10/125 or 250
