YP-92L North America  -  NEMA 5-50P Power Cord Plug (YP-92L)

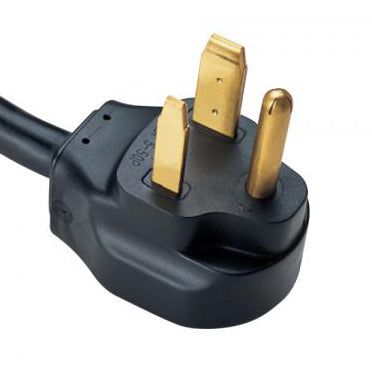

NEMA 5-50P molded heavy duty three prong power cord plug with cUL approval. Rated up to 50A 125V. Built to the NEMA 5-50P standard. Our NEMA 5-50P plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard NEMA 5-50P 3 prong down angle plug
Maximum Current rating 50A
Maximum Voltage 125V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 6AWG through 12AWG
Outer Mold Material 35P PVC
Blade Material Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
12/3 SPT-3 (TPE), SPT-3, SJ, SJO, SJOW, SJOO, SJOOW, EVT, EVJT, EVE, EVJE 25/125
10/3 SPT-3, SJT, SJTW, SJTO, SJTOW, ST, STW, STOW (All TPE material), SJT, SJTO, SJTW, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOO, SJOOW, SO, SOW, SOOW, EVT, EVE 30/125
8/3 ST, STW, STOW (All TPE material), ST, STW, STOW, SO, SOW, SOOW, EVT, EVE 40/125
6/3 ST, STW, STOW (All TPE material), ST, STW, STOW, SO, SOW, SOOW, EVT, EVE 50/250
