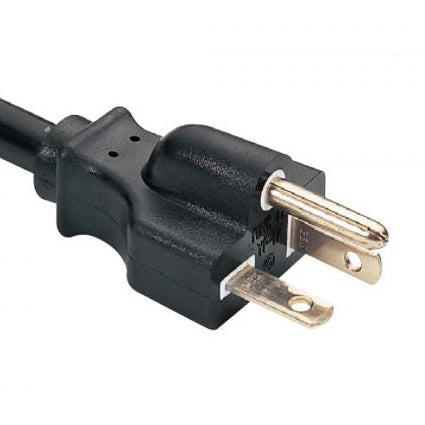

NEMA 5-20P Power Cord Plug (YP-17)

Vendor: SIGNAL+POWER

SKU: YP-17

Product Type: OEM Custom

OEM Custom: NEMA 5-20P Power Cord Plug (YP-17) NEMA 5-20P USA power cord plug with UL and CSA certification. Rated up to 20A 125V. Built to the NEMA 5-20P standard. Our NEMA 5-20P power cord plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant. The...

Description

OEM Custom: NEMA 5-20P Power Cord Plug (YP-17)

NEMA 5-20P USA power cord plug with UL and CSA certification. Rated up to 20A 125V. Built to the NEMA 5-20P standard. Our NEMA 5-20P power cord plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

The NEMA 5-20 molded power cord plug is stocked in the following configurations:

NEMA 5-20 Extension Cord

NEMA 5-20P to C19

Any configuration can be made so if you don't see what you are looking for, please contact us with your preferred configuration:

Phone: 888-788-4884 Email: sales@signalandpower.com

Attribute	Specification
Connector Standard	NEMA 5-20P plug
Maximum Current rating	20A
Maximum Voltage	125V
Number of Poles and Wires	2 poles, 3 wires
Available Wire Thickness	12AWG through 18AWG
Outer Mold Material	35P PVC
Blade Material	Nickel Coated Brass
Flammability Rating	UL 94V-0
Color	Black is standard but any color available
Temperature Rating	-40°C through +75°C
Approvals	cUL file# E152635, CSA certificate# 1868157
Environmental Certifications	RoHS, REACH
Testing	Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors	Cord Type	Electrical Rating (Amps/Volts)
18/3	SVT, SVT Shielded, SVTO, SJT, SJT Shielded, SJTW, SJTW Shielded, SJTO, SJTOW, ST, STW, STOW, SPT-2, SPT-3 (All TPE material), SVT, SVT Shielded, SVTO, SJT, SJT Shielded, SJTW, SJTW Shielded, SJTO, SJTOW, ST, STW, STOW, SV, SVO, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW, SPT-2, SPT-3, EVT, EVJT, EVE, EVJE	10/125
17/3	SVT, SVTO (All TPE material), SVT, SVTO, SV, SVO, EVT, EVJT, EVE, EVJE	12/125
16/3	SVT, SVTO, SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SPT-2, SPT-3 (All TPE material), SVT, SVTO, SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SV, SVO, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW, SPT-2, SPT-3, EVT, EVJT, EVE, EVJE	13/125
14/3	SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW, SPT-3, EVT, EVJT, EVE, EVJE	15/125
12/3	SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW, SPT-3SPT-3, S, SJ, SJO, SJOW, SJOOW, EVT, EVJT, EVE, EVJE	20/125
