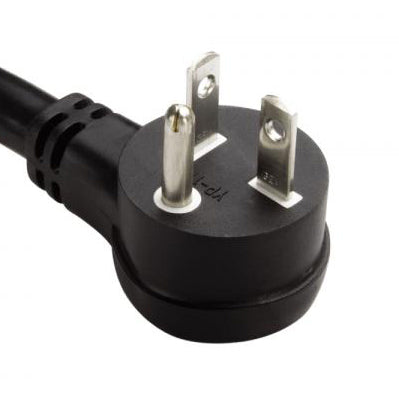

NEMA 5-20P Left Angle Molded Plug (YP-17L-7)
OEM Custom: NEMA 5-20P Left Angle Molded Plug (YP-17L-7) NEMA 5-20P left angle USA power cord plug with cUL certification. The plug is rated up to 20A 125V and built to the NEMA 5-20P USA plug standard. Our NEMA 5-20P power cord plugs are fully molded with a low profile ergonomic...
CONTACT US TO ORDER
OEM Custom: NEMA 5-20P Left Angle Molded Plug (YP-17L-7) NEMA 5-20P left angle USA power cord plug with cUL certification. The plug is rated up to 20A 125V and built to the NEMA 5-20P USA plug standard. Our NEMA 5-20P power cord plugs are fully molded with a low profile ergonomic design and fully RoHS and REACH compliant. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
Attribute | Specification |
---|---|
Connector Standard | NEMA 5-20P left angle plug |
Maximum Current rating | 20A |
Maximum Voltage | 125V |
Number of Poles and Wires | 2 poles, 3 wires |
Available Wire Thickness | 12AWG through 18AWG |
Outer Mold Material | 35P PVC |
Blade Material | Nickel Coated Brass |
Flammability Rating | UL 94V-0 |
Color | Black is standard but any color available |
Temperature Rating | -40°C through +75°C |
Approvals | cUL file# E152635 |
Environmental Certifications | RoHS, REACH |
Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
---|---|---|
18/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW (All TPE material), SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, EVT, EVJT, EVE, EVJE | 10/125 |
16/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW (All TPE material), SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, EVT, EVJT, EVE, EVJE | 13/125 |
14/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, SPT-3, EVT, EVJT, EVE, EVJE | 18/125 |
12/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, SPT-3, EVT, EVJT, EVE, EVJE | 20/125 |
