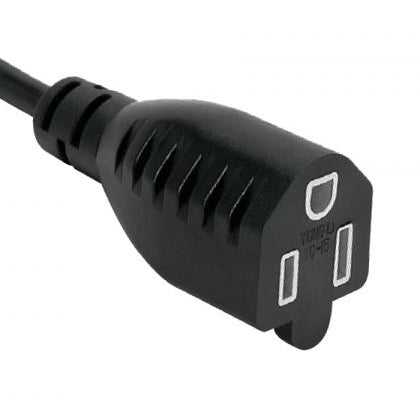

NEMA 5-15R Power Cord Receptacle (YC-15)
- Fully Certified by Territory
- Made to Order
- Expert Advice Available on Product
- Fast & Secure Shipping
- Description
- Product Specification
- Shipping & Returns
- Customer Review
|
OEM Custom: NEMA 5-15R Power Cord Receptacle (YC-15) NEMA 5-15R USA power cord receptacle with cUL approval. Built to the NEMA 5-15R standard. Rated up to 15A 125V. Our NEMA 5-15R power cord receptacles are fully molded with a low profile ergonomic design and RoHS and REACH compliant. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | NEMA 5-15R three prong receptacle |
| Maximum Current rating | 15A |
| Maximum Voltage | 125V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 12 through 16AWG |
| Outer Mold Material | 50P PVC |
| Blade Material | Nickel Coated Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | cUL file# E152635 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 16/3 | SVT, SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, SPT-2, SPT-3 | 13/125 |
| 14/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, SPT-3 | 15/125 |
| 12/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, SPT-3 | 15/125 |
| Attribute | Specification |
|---|---|
| Connector Standard | NEMA 5-15R three prong receptacle |
| Maximum Current rating | 15A |
| Maximum Voltage | 125V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 12 through 16AWG |
| Outer Mold Material | 50P PVC |
| Blade Material | Nickel Coated Brass |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | cUL file# E152635 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 16/3 | SVT, SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, SPT-2, SPT-3 | 13/125 |
| 14/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, SPT-3 | 15/125 |
| 12/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, SPT-3 | 15/125 |
