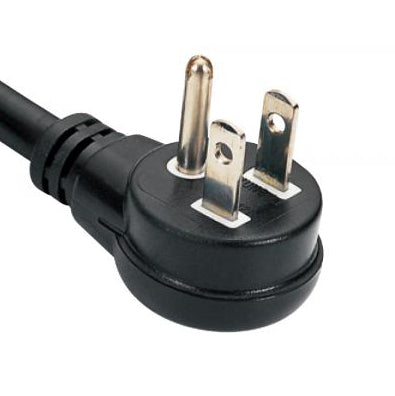

NEMA 5-15P Up Angle Power Cord Plug (YP-12L)

SIGNAL+POWER
YP-12L North America BLK QTY
OEM Custom
OEM Custom  YP-12L North America  -  NEMA 5-15P Up Angle Power Cord Plug (YP-12L) NEMA 5-15P USA 3 prong up angle power cord plug with UL and CSA certification. Rated up to 15A 125V, 13A 125V or 10A 125V. Built to the NEMA 5-15P standard. Our NEMA 5-15 power cord...


CONTACT US TO ORDER



customers are viewing this product

OEM Custom
YP-12L North America  -  NEMA 5-15P Up Angle Power Cord Plug (YP-12L)

NEMA 5-15P USA 3 prong up angle power cord plug with UL and CSA certification. Rated up to 15A 125V, 13A 125V or 10A 125V. Built to the NEMA 5-15P standard. Our NEMA 5-15 power cord plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard NEMA 5-15P up angle low profile 3P plug
Maximum Current rating 15A
Maximum Voltage 125V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 12 through 18AWG
Outer Mold Material 35P PVC
Blade Material Nickel Coated Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635, CSA file# LR76393
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
18/3 SVT, SVT shielded, SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SPT-2, SPT-3 (All TPE material), SVT, SVT shielded, SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, SPT- 2, NISPT-2, SPT-3, EVT, EVJT, EVE, EVJE 10/125
16/3 SVT, SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SPT-2, SPT-3 (All TPE material), SVT, SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, SPT-2, SPT-3, EVT, EVJT, EVE, EVJE 13/125
14/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, SPT-3, EVT, EVJT, EVE, EVJE 15/125
12/3 SJT, SJTW, SJTO, SJTOW, ST, STW, STOW (All TPE material), SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SO, SOW, SOOW, EVT, EVJT, EVE, EVJE 15/250
