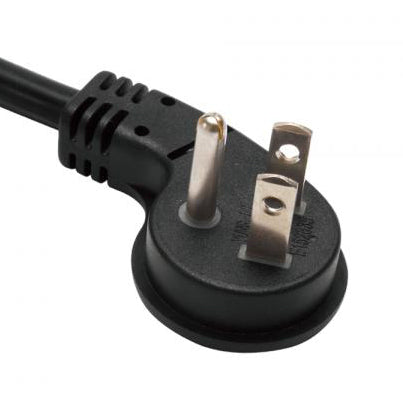

NEMA 5-15P Ultra Low Profile Angled Cord Plug (YP-12L-9)

Vendor: SIGNAL+POWER

SKU: YP-12L-9

Product Type: OEM Custom

OEM Custom: NEMA 5-15P Ultra Low Profile Angled Cord Plug (YP-12L-9) NEMA 5-15P ultra low profile USA 3 prong angled power cord plug with UL and CSA certification. Rated up to 15A 125V, 13A 125V or 10A 125V. Built to the NEMA 5-15P standard, our NEMA 5-15 power cord plugs are...

Description

OEM Custom: NEMA 5-15P Ultra Low Profile Angled Cord Plug (YP-12L-9)

NEMA 5-15P ultra low profile USA 3 prong angled power cord plug with UL and CSA certification. Rated up to 15A 125V, 13A 125V or 10A 125V. Built to the NEMA 5-15P standard, our NEMA 5-15 power cord plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant.

The NEMA 5-15 ultra low profile angled molded power cord plug is stocked in the following configuration:

NEMA 5-15P to IEC C13: P-12L912-06B

Any configuration can be made so if you don't see what you are looking for, please contact us with your preferred configuration:

Phone: 888-788-4884 Email: sales@signalandpower.com

Attribute	Specification
Connector Standard	NEMA 5-15P angled ultra low profile 3P plug
Maximum Current rating	15A
Maximum Voltage	125V
Number of Poles and Wires	2 poles, 3 wires
Available Wire Thickness	12AWG through 18AWG
Outer Mold Material	35P PVC
Blade Material	Nickel Coated Brass
Flammability Rating	UL 94V-0
Color	Black is standard but any color available
Temperature Rating	-40°C through +75°C
Approvals	cUL file# E152635
Environmental Certifications	RoHS, REACH
Testing	Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors	Cord Type	Electrical Rating (Amps/Volts)
18/3	SVT, SVT Shielded, SJT, SJT Shielded, SJTW, SJTW Shielded, SJTOW, SPT-2 (All TPE material), SPT-2, SVT, SVT Shielded, SJT, SJT Shielded, SJTW, SJTW Shielded, SJTOW, EVT, EVJT, EVE, EVJE	10/125
17/3	SVT (TPE), SVT, EVT, EVJT, EVE, EVJE	12/125
16/3	SVT, SJT, SJTW, SJTO, SJTOW, SPT-2 (All TPE material), SPT- 2, SVT, SJT, SJTO, SJTW, SJTOWEVT, EVJT, EVE, EVJE	13/125
14/3	SJT, SJTW, SJTO, SJTOW (All TPE material), SJT, SJTO, SJTW, SJTOW, EVT, EVJT, EVE, EVJE	15/250
12/3	SJT, SJTW, SJTO, SJTOW (All TPE material), SJT, SJTO, SJTW, SJTOW, EVT, EVJT, EVE, EVJE	15/125
