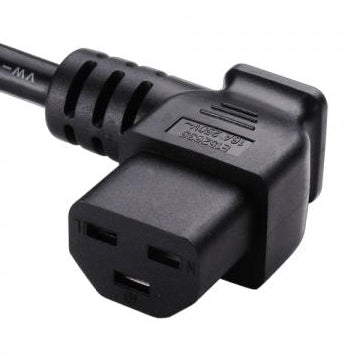

Left Angle IEC C21 Power Cord Receptacle (YC-25L-1)
- Fully Certified by Territory
- Made to Order
- Expert Advice Available on Product
- Fast & Secure Shipping
- Description
- Product Specification
- Shipping & Returns
- Customer Review
|
OEM Custom: Left Angle IEC C21 Power Cord Receptacle (YC-25L-1) - North America IEC C21 left angle 3 prong power cord receptacle with cUL certification. Built to the right angle IEC60320-C21 standard. Rated up to 20A 250V. Our left angle IEC C21 receptacles are fully molded with a low profile ergonomic design and RoHS and REACH compliant. They carry all necessary approvals and certifications. The IEC C21 power cord receptacle is similar to the C19 but it is designed for use in higher temperature applications. The maximum pin temperature of the appliance inlet is 65 °C with a C19 but up to 155 °C for the C21. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | IEC 60320 C21 left angle |
| Maximum Current rating | 20A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 12AWG through 16AWG |
| Outer Mold Material | 50P PVC |
| Blade Material | Phosphorous Bronze |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +155°C |
| Approvals | cUL file# E152635 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 16/3 | SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 | 13/125 or 250 |
| 15/3 | SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 | 16/125 or 250 |
| 14/3 | SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 | 16/125 or 250 |
| 12/3 | SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 | 20/125 or 250 |
| Attribute | Specification |
|---|---|
| Connector Standard | IEC 60320 C21 left angle |
| Maximum Current rating | 20A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 12AWG through 16AWG |
| Outer Mold Material | 50P PVC |
| Blade Material | Phosphorous Bronze |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +155°C |
| Approvals | cUL file# E152635 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 16/3 | SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 | 13/125 or 250 |
| 15/3 | SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 | 16/125 or 250 |
| 14/3 | SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 | 16/125 or 250 |
| 12/3 | SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 | 20/125 or 250 |
