Left Angle IEC C19 Power Cord Receptacle (YC-18L-1)

SIGNAL+POWER
YC-18L-1 North America BLK QTY
OEM Custom
OEM Custom  YC-18L-1 North America  -  Left Angle IEC C19 Power Cord Receptacle (YC-18L-1) cUL certified 3 prong left angle IEC C19 power cord receptacle. Built to the IEC320-C19 standard for use in North and South America. Rated up to 20A 250V. Our left angle C19 power cord receptacles are...


CONTACT US TO ORDER



OEM Custom
YC-18L-1 North America  -  Left Angle IEC C19 Power Cord Receptacle (YC-18L-1)

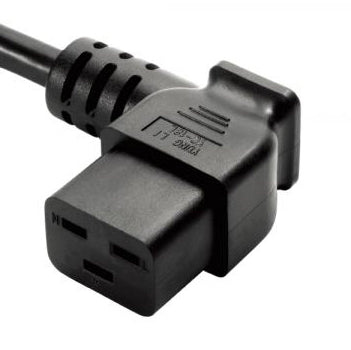

cUL certified 3 prong left angle IEC C19 power cord receptacle. Built to the IEC320-C19 standard for use in North and South America. Rated up to 20A 250V. Our left angle C19 power cord receptacles are fully molded with a low profile ergonomic design with all necessary agency approvals.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard IEC 60320 C19 left angle
Maximum Current rating 20A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 12AWG through 16AWG
Outer Mold Material 50P PVC
Blade Material Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635, ENEC certificate# 40028725
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
16/3 SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 13/125 or 250
15/3 SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 16/125 or 250
14/3 SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 16/125 or 250
12/3 SJT, SJTW, SJTO, SJTOW, SJTOOW, ST, STW, STOW, STOOW, SPT-3 (All TPE material), SJT, SJTW, SJTO, SJTOW, SJTOOW, SJ, SJO, SJOO, SJOW, SJOOW, ST, STW, STOW, STOOW, S, SO, SOW, SOO, SOOW, SPT-3 20/125 or 250
