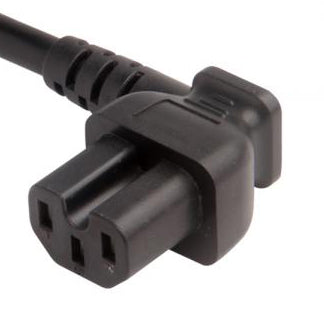

YC-20L-1 North America  -  Left Angle IEC C15 Power Cord Receptacle (YC-20L-1)

Left angle IEC C15 power cord receptacle with cUL, CE, VDE and ENEC approvals. Built to the IEC 60320-C15 standard for use in North America and South America. Rated up to 15A 125V/250V, 13A 125V/250V or 10A 125V/250V. Our IEC C15 power cord receptacles are fully molded with a low profile ergonomic design and RoHS and REACH compliant.The left angle IEC C15 power cord receptacle is essentially the same as the C13 but it is designed for use in higher temperature applications. The maximum pin temperature of the appliance inlet is 70°C with a C13 but up to 120°C for the C15. It is distinguished from the C13 by adding a polarizing notch to the bottom surface and perfect for applications such as electric griddles, kettles and kitchen warmers as well as data center gear known for higher operating temperatures.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard IEC 60320 C15 left angle
Maximum Current rating 15A
Maximum Voltage 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 14AWG through 18AWG
Outer Mold Material 50P PVC
Blade Material Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +120°C
Approvals cUL file# E152635, VDE, ENEC, and PSE
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors Cord Type Electrical Rating (Amps/Volts)
18/3 SVT, SVTO, SVTOO, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW (All TPE material, Shielded and Non-shielded for all types), SVT, SVTO, SVTOO, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SV, SVO, SJ, SJO, SJOW, SJOO, SJOOW (Shielded and Non-shielded for all types) 10/125 or 250
17/3 SVT, SVTO, SVTOO, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW (All TPE material, Shielded and Non-shielded for all types), SVT, SVTO, SVTOO, SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SV, SVO, SJ, SJO, SJOW, SJOO, SJOOW (Shielded and Non-shielded for all types) 12/125 or 250
16/3 SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW (All TPE material, Shielded and Non-shielded for all types), SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SJ, SJO, SJOW, SJOO, SJOOW (Shielded and Non-shielded for all types) 13/125 or 250
15/3 SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW (All TPE material, Shielded and Non-shielded for all types), SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SJ, SJO, SJOW, SJOO, SJOOW (Shielded and Non-shielded for all types) 14/125 or 250
14/3 SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW (All TPE material, Shielded and Non-shielded for all types), SJT, SJTW, SJTO, SJTOW, SJTOO, SJTOOW, SJ, SJO, SJOW, SJOO, SJOOW (Shielded and Non-shielded for all types) 15/125 or 250
