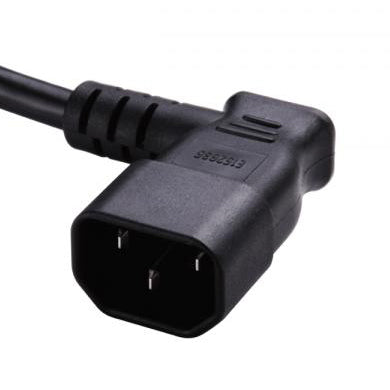

Left Angle IEC C14 Power Cord Plug (YP-32L-1)

YP-32L-1 North America BLK QTY

Regular price Save $0.00
Shop Wholesale / Login

OEM Custom
YP-32L-1 North America  -  Left Angle IEC C14 Power Cord Plug (YP-32L-1)

IEC C14 USA three prong left angle power cord plug with UL and CSA certification. Rated up to 15A 125V/250V, 13A 125V/250V, or 10A 125V/250V depending upon wire and mating connector selected. Built to the IEC 60320-C14 standard. Our IEC C14 left angle plugs are fully molded with a low profile ergonomic design and fully RoHS and REACH compliant.

For price, availability or consultation contact us at:

Phone: 888-788-4884   Email: sales@signalandpower.com

Attribute Specification
Connector Standard IEC 60320 C14 left angle
Maximum Current rating 15A
Maximum Voltage 125V or 250V
Number of Poles and Wires 2 poles, 3 wires
Available Wire Thickness 14AWG through 18AWG
Outer Mold Material 35P PVC
Blade Material Nickel Coated Brass
Flammability Rating UL 94V-0
Color Black is standard but any color available
Temperature Rating -40°C through +75°C
Approvals cUL file# E152635
Environmental Certifications RoHS, REACH
Testing Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity
