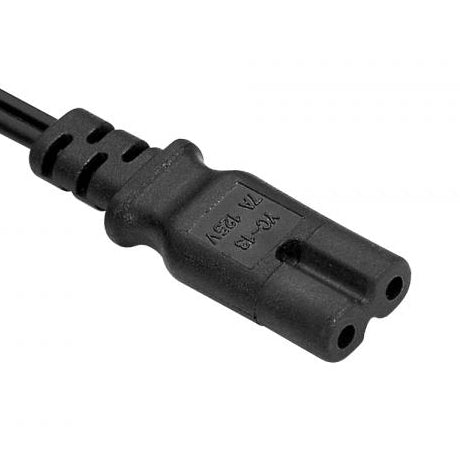

IEC C7 Power Cord Receptacle (YC-13)
OEM Custom: IEC C7 Power Cord Receptacle (YC-13) - North America IEC C7 power cord receptacle with UL and CSA certification. Built to the IEC 60320-C7 standard. Rated up to 10A 125V for use in North and South America. Our IEC C7 power cord receptacles are fully molded with a low...
CONTACT US TO ORDER
OEM Custom: IEC C7 Power Cord Receptacle (YC-13) - North America IEC C7 power cord receptacle with UL and CSA certification. Built to the IEC 60320-C7 standard. Rated up to 10A 125V for use in North and South America. Our IEC C7 power cord receptacles are fully molded with a low profile, ergonomic, molded design and RoHS and REACH compliant. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
Attribute | Specification |
---|---|
Connector Standard | IEC 60320 C7 |
Maximum Current rating | 15A |
Maximum Voltage | 125V |
Number of Poles and Wires | 2 poles, 2 wires |
Available Wire Thickness | 18AWG |
Outer Mold Material | 35P PVC |
Blade Material | Phosphorous Bronze |
Flammability Rating | UL 94V-0 |
Color | Black is standard but any color available |
Temperature Rating | -40°C through +75°C |
Approvals | cUL file# E152635, CSA file# LL76398, Mexico NOM-ANCE certificate# 201001C04307 |
Environmental Certifications | RoHS, REACH |
Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
---|---|---|
18/2 | SPT-1, SPT-2, NISPT-2, SVT, SJT (All TPE material), SPT-1, SPT-1W, SPT-2, SPT-2W, NISPT-1, NISPT-2, SVT, SJT | 7/125 or 2.5/250 |
