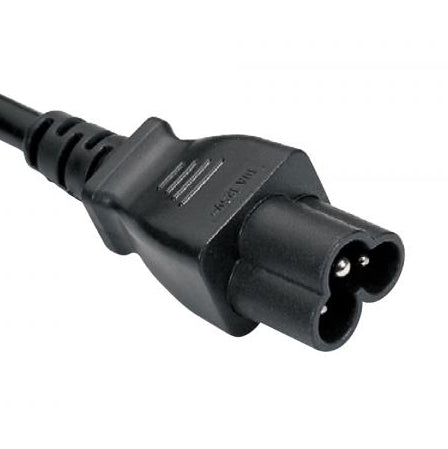

IEC C6 Power Cord Plug (YP-34)

Vendor: SIGNAL+POWER

SKU: YP-34

Product Type: OEM Custom

OEM Custom: IEC C6 Power Cord Plug (YP-34) - North America IEC C6 three prong power cord plug with cUL approval. Rated up to 10A 125V/250V. Built to the IEC 60320-C6 standard. Our IEC C6 plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant. This...

Description

OEM Custom: IEC C6 Power Cord Plug (YP-34) - North America

IEC C6 three prong power cord plug with cUL approval. Rated up to 10A 125V/250V. Built to the IEC 60320-C6 standard. Our IEC C6 plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant. This IEC C6 plug is commonly known as the cloverleaf or mickey mouse plug and mates with the IEC C5 receptacle.

For price, availability or consultation contact us at:

Phone: 888-788-4884 Email: sales@signalandpower.com

Attribute	Specification
Connector Standard	IEC 60320 C6
Maximum Current rating	13A
Maximum Voltage	125V or 250V
Number of Poles and Wires	2 poles, 3 wires
Available Wire Thickness	16AWG, 17AWG and 18AWG
Outer Mold Material	35P PVC
Blade Material	Nickel Coated Brass
Flammability Rating	UL 94V-0
Color	Black is standard but any color available
Temperature Rating	-40°C through +75°C
Approvals	cUL file# E152635, VDE, ENEC
Environmental Certifications	RoHS, REACH
Testing	Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity

Available Wire Styles

Gauge/ # Conductors	Cord Type	Electrical Rating (Amps/Volts)
18/3	SVT, SJT, SJTW (All TPE material), SVT, SJT, SJTW, EVT, EVJT, EVE, EVJE	10/125 or 250, 7/125, 2.5/250
17/3	SVT, SJT, SJTW (All TPE material), SVT, SJT, SJTW, EVT, EVJT, EVE, EVJE	12/125 or 250
16/3	SJT, SJTW (All TPE material), SJT, SJTW, EVT, EVJT, EVE, EVJE	13/125 or 250
