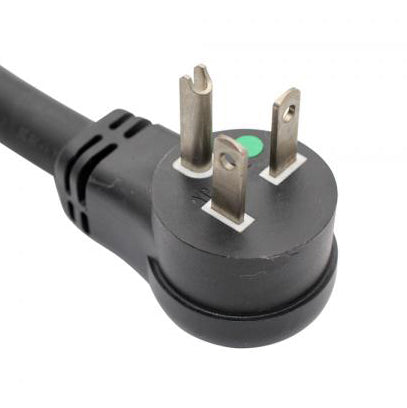

Hospital Grade Up Angle NEMA 6-20P Plug (YP-16HL)
- Premium Construction
- Made to Order
- Fully Tested, Approved and Certified
- High Temperature Rating
- Fast & Secure Shipping
- Description
- Product Specification
- Shipping & Returns
- Customer Review
|
Hospital Grade: Up Angle NEMA 6-20P Plug (YP-16HL) - North America USA hospital grade green dot NEMA 6-20P up angle power cord plug with UL approval. Built to the NEMA 6-20P standard and UL817 hospital grade green dot standard. Rated up to 20A 250V, 18A 250V, 13A 250V or 10A 250V. Our hospital grade NEMA 6-20P power cord plugs are fully molded with a low profile ergonomic design and RoHS and REACH compliant. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | NEMA 6-20P up angle Hospital Grade Green Dot plug |
| Maximum Current rating | 20A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 12 through 18AWG |
| Outer Mold Material | 35P PVC |
| Blade Material | Nickel Coated Brass |
| Flamability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | UL file# E152635 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 18/3 | SJT, SJT SHIELDED, SJTW, SJTW SHIELDED, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW | 10/250 |
| 16/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW | 13/250 |
| 14/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW | 18/250 |
| 12/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW | 20/250 |
| Attribute | Specification |
|---|---|
| Connector Standard | NEMA 6-20P up angle Hospital Grade Green Dot plug |
| Maximum Current rating | 20A |
| Maximum Voltage | 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 12 through 18AWG |
| Outer Mold Material | 35P PVC |
| Blade Material | Nickel Coated Brass |
| Flamability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | UL file# E152635 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 18/3 | SJT, SJT SHIELDED, SJTW, SJTW SHIELDED, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW | 10/250 |
| 16/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW | 13/250 |
| 14/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW | 18/250 |
| 12/3 | SJT, SJTW, SJTO, SJTOW, ST, STW, STOW, SJ, SJO, SJOW, SJOOW, S, SO, SOW, SOOW | 20/250 |
